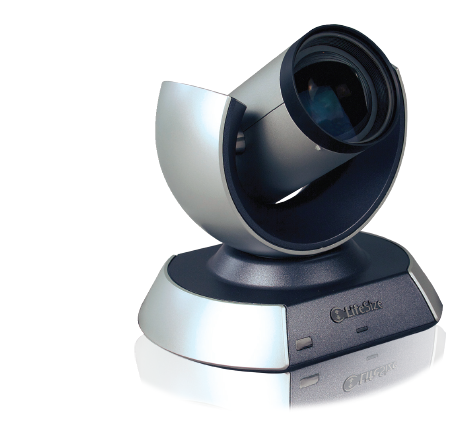

LifeSize®Camera 10x™


10x optical zoom provides unprecedented and world-class immersive full HD 1080p30visionfrequency communication experience


LifeSize®Camera 10x™



zoom function


LifeSize®Camera 10x™With the highest quality zoom function, it can provide long-distance high-definition video for offices, conference rooms, conference centers or halls of any size. In order to further improve image clarity and flexibility, Lifesize Camera 10x provides immersive image quality under various bright conditions, including low light environments such as administrative conference rooms or large university lecture halls.



Lifesize Camera 10x has a tenfold optical zoom effect, which can provide better low-light processing for medium and large spaces, and supports full HD 1080p of 30 frames per second, which can provide lifelike video pictures, thus improving the high-definition video communication function. LifeSize Camera 10x with any LifeSize®220™The series of products work together to perfectly capture every pose and facial expression-so detailed and realistic as if you were on the scene.



using smooth and quiet pan-tilt processing and shading plates, LifeSize Camera 10x ensures that attendees and shared information are always the focus of high-definition video calls. LifeSize Camera 10x provides a real collaborative reality communication experience and is your ideal choice.

Specifications

camera
resolution: 1920 x1080/1280x720
Frame rate: 30 fps @ 1080p/60 fps @ 720p
shutter speed: 1/30, 1/50 (50Hz), 1/60,1/100 (50Hz), 1/120 sec
Format: 16:9
illuminance: 150 lux to daylight
Exposure: Auto/EV adjustment
White Balance: Auto/Manual
Focus: automatic and passive comparison
Focal length: 750px (12 ") to infinity
lens and image sensor
lens structure: 12-element zoom
aperture: F/2.8 - F/4.2
distortion rate: less than 5%
sensor type: CMOS
Effective pixels: 2,073,600
SNR:52 dB

Yuntai
left and right rotation angle: +/- 87.5(245 full viewing angle)
Tilt angle: +/- 30(102 full viewing angle)
optical zoom: 10x
horizontal vision: 8.0to 70
aperture priority: fixedfunction
power supplytripod installation: standard ¼-20 tripod installation
provides universal input AC/DC power supplySelf-test: Yes
100-240VAC 50/60HzDefault value: 10
Standard 20w, maximum 46w.Total Size
APIwidth: 184mm (7.25 ")
1x HD camera port (1080p/720p)depth: 148mm (5.83 ")
cableHeight: 156mm (6.14 ")
1 x HDMI(3M/9.8 ft)shipping weight: 1.25kg(2.75 pounds)
Environment parameters
operating temperature: 0C (32F) to 40C (104F)
working humidity: 15% to 85%, non-condensing
storage temperature:-20C (-4F) to 60C (140F)
storage humidity: 10% to 90%, non-condensing
