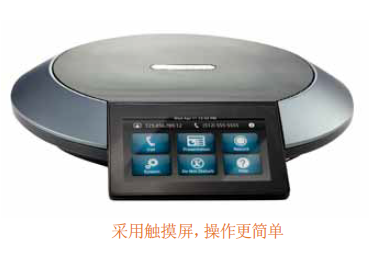

LifeSize Phone 2nd Generation


HD video collaboration is at your fingertips LifeSize®Phone™Focus on providing you with high-definition video and audio collaboration at your fingertips. The phone uses an intuitive touch screen interface that anyone can easily use. It is so charming that everyone will love it. You no longer need to use separate remote controls to manage calls. LifeSize Phone's intuitive touch screen interface makes video communication unimpeded. Users can easily share content, control cameras, change layouts, add callers, and handle other transactions. When collaborating through video, your video conferencing technology should be simple, intuitive and easy to use. Now, you can use LifeSize Phone to manage video and audio with confidence.conference technology. Talking and negotiating with colleagues and partners has become easier than before. -class audio quality combines the simplicity of the LifeSize Phone touch screen with excellent sound quality to provide an engaging video communication experience and efficient video calls. Advanced beamforming technology controls the microphone the position towards the speaker to reduce indoor noise. This means that everyone in the conference room can hear the speech, no matter where they sit. There is no need to gather around the phone or move the phone during a call. large soundproof speaker housing is equipped with a powerful speaker drive unit, which can achieve first-class frequency response, reduce distortion, and make sound and dialogue more realistic. It feels like the caller is sitting across the table talking to you. a comprehensive conference room solution new LifeSize Phone currently only comes with LifeSize®Room 220™provided, including codecs, LifeSize®Camera 10x™And LifeSize Phone, providing unparalleled conference room experience. simple touch screen operation, first-class audio quality, LifeSize Phone will change your conference room experience, make everyone's dialogue full of fun! LifeSize Phone to make the conversation fun. |
|
| Specifications | LifeSize®Phone™second generation | |
| Phone console specifications | advanced audio functions | system design |
| system speaker | acoustic echo suppression | Physical size |
| powerful rare earth magnet speaker drive unit | microphone background noise suppression | height: 46.5mm/1.83 inch |
| wide soundproof speaker housing | VAD (Voice Activity Detector) | diameter: 266mm/10.48 inch |
| frequency response: 90Hz to 16 kHz for deep sound reproduction and high definition without hiss | AGC (Microphone Automatic Gain Control) Adaptive Jitter Buffer and Packet Loss Hiding | weight: 1.5kg/3.3 lb. |
| The volume can be adjusted to 90 dB SPL at the peak of ½ meter. | 48 kHz sampling rate of professional audio | |
| -10 dBmO | energy consumption | |
| < 3% 100Hz-200Hz | : 6.5 watts | |
| < 0.5% 250Hz - 20,000Hz | touch screen display | call: 7.6 watts |
| spectrum peak limit prevents speaker peak shaving without distortion | WQVGA multi-touch capacitive display | |
| size: 4.3 inches (diagonal) | Environment data | |
| system microphone | resolution: 480x 272 pixels, 0.198mm pitch (128 PPI) | operating temperature: 0°C (32 °F) to 40°C (104 °F) |
| four orthogonally placed low noise microphones (80 dB SNR before noise reduction) beamformer algorithm can control the position of the microphone towards the speaker, obtain more sound and reduce indoor noise | contrast: 500:1 (standard) maximum brightness: 500 cd/m (standard) | working humidity: 10% to 85% (non-condensing) storage temperature:-20 c (-4 f) to 60 c (140 f) storage humidity: 10% to 90% (non-condensing) |
| network | LifeSize Phone packaging | does not interfere with mobile devices |
| VoIP connection and audio system are integrated into the same device | Desktop console | when mobile devices are placed near LifeSize Phone, they are designedenough |
| Ethernet Connection: RJ-45 Shielding Interface | cable: 1-30ft (9.14 m) RJ-45 cable, | reduce or eliminate audible radio frequency interference |
| 10/100 Mbps automatic sensing | to connectLifeSize video system | |
| Automatic MDIX | Enable Power over Ethernet (PoE),802.3af | |
| Half-duplex or full-duplex | LifeSize Phone, 2nd Generation = Regulatory Model LFZ-021 | |
| link/active LED indicator | ||
| PoE power LED indicator | ||
| 4 high-speed digital LifeSize Link interfaces to meet future equipment requirements |
