Xcellon-Flex™The combined 10/40GE acceleration performance module is the first load module in the testing industry that can provide 10GE SFP and 40GE QSFP ports in a single chassis slot.each module has 16 10GE ports and 4 40GE ports, it can easily beat competitors in terms of port density and flexibility. It uses aggregation technology combined with CPU processing power and memory, which can provide ultra-high network protocol scalability: the best performance can reach 12 times that of its closest competitors.processor resources and memory can be dynamically aggregated among multiple groups of 4-10GE ports, so that each module can create up to 4 super ports, which has the greatest protocol scalability.

In addition, Xcellon-Flex is the only 40GE test product that can provide 4-7 layer application support on a large scale.Xcellon-Flex runs in conjunction with Ixia's test application IxNetwork and IxLoad, and is the best product to provide high-performance 2-7-layer testing at 10/40GE speed.





Specifications:


function10/40GE Acceleration Performance Load Module
Module modelFlexAP1040SQ
Number of ports per moduleSFP 10GE on port 16 and QSFP 40GE on port 4
The number of chassis slots for each module1
Maximum number of slots per cabinet:

- XM12 High Performance Edition

- XM2 Desktop

96Port10GE SFPand24Port40GE QSFP

16Port10GE SFPand4Port40GE QSFP
SFP photoelectric transceiver10GBASE-SR/SW and 10GBASE/LR/LW
multi-core processoris
Interface protocolIEEE8002.3ae10GbE LAN and IEEE802.3ba 40GBASE-R LAN
Data Center Protocolpriority-based traffic control(IEEE 802.1Qbb)

(You can selectDCBX,FCoE,FCFupgrade)
Layer 2-3 routing protocol simulationis
Layer 4-7 Application Traffic Testis
pooling capabilityYes (for port 10GE)
Capture buffer per port256MB (10GE) and 1GB (40GE)
Number of transport streams per port (sequential value)
Number of transport streams per port (any value)1 million
The number of streams per port.512
error generation10GE:CRC(OK/bad/none), too small, too large

40GE:CRC(OK/bad), too small, too large
Traceable receive streams1 million
filter48-bit source/destination address, 2x 128-bit user-defined mode and offset, frame length range, CRC error, data integrity error, and sequence check error (small, large, and reverse).
Data statistics and rate (counter size:64bit)Link status, line speed, sent frames, received valid frames, and sent/The received byte, fragment, is too small, too large,CRCerror,VLANFlag frames,6user-defined statistics(UDS).(UDS 3), capture filters(UDS 4),8QoScounters, data integrity frames, data integrity errors, sequence check frames, sequence check errors,ARPandpingRequest and response
10GE link failure signalinglink status indicator: no fault, local fault, and remote fault
40GE link failure signalingcan generate costs and remote failures, control the number and sequence of failures, and also choose to have transmission ports ignore link failures from remote link partners.
delay measurement10GE:The package timestamp is used.20 ns

40GE: uses the package timestamp.2.5 ns
inherent delay adjustmentcan eliminate the inherent delay from any MSA-compliant 10GE SFP and 40GE QSFP transceivers without factory support
transmission line clock adjustmentcan adjust the line frequency in parts per million (ppm) from -105 to 105 ppm:







Solution

Xcellon-Flex Combo 10/40GE

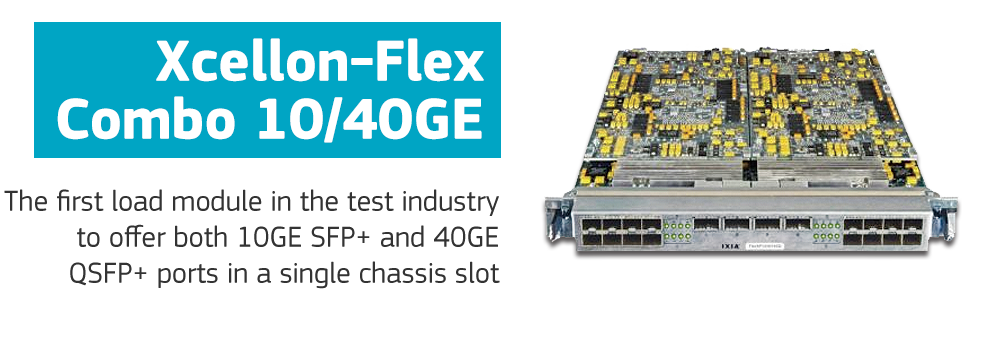

The first load module in the test industry to offer both 10GESFP and 40GE QSFP ports in a single chassis slot.
